TRAVERSE™

Singlefold Edgeless Ramp

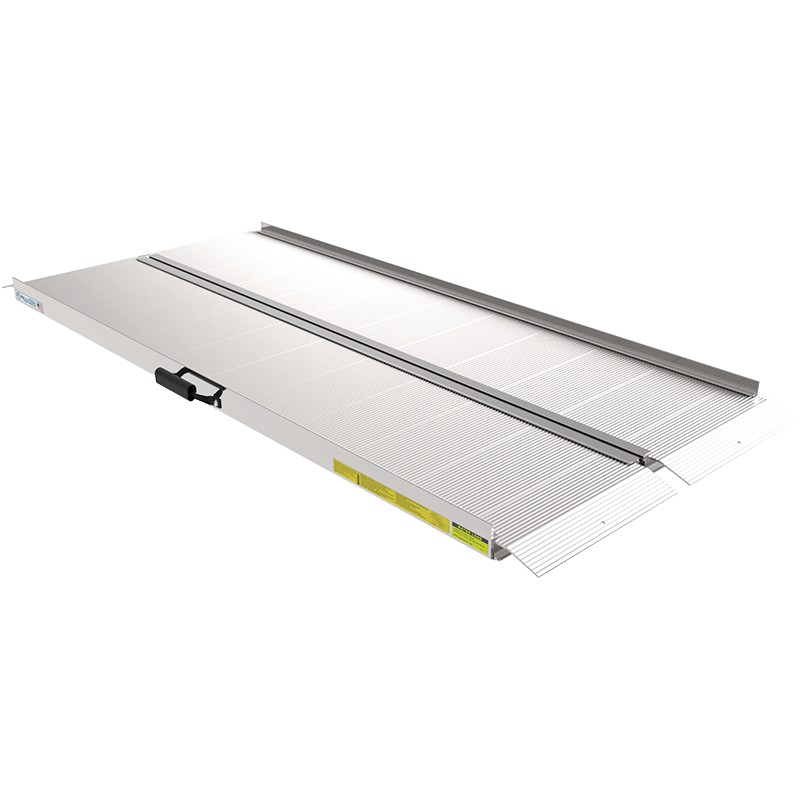

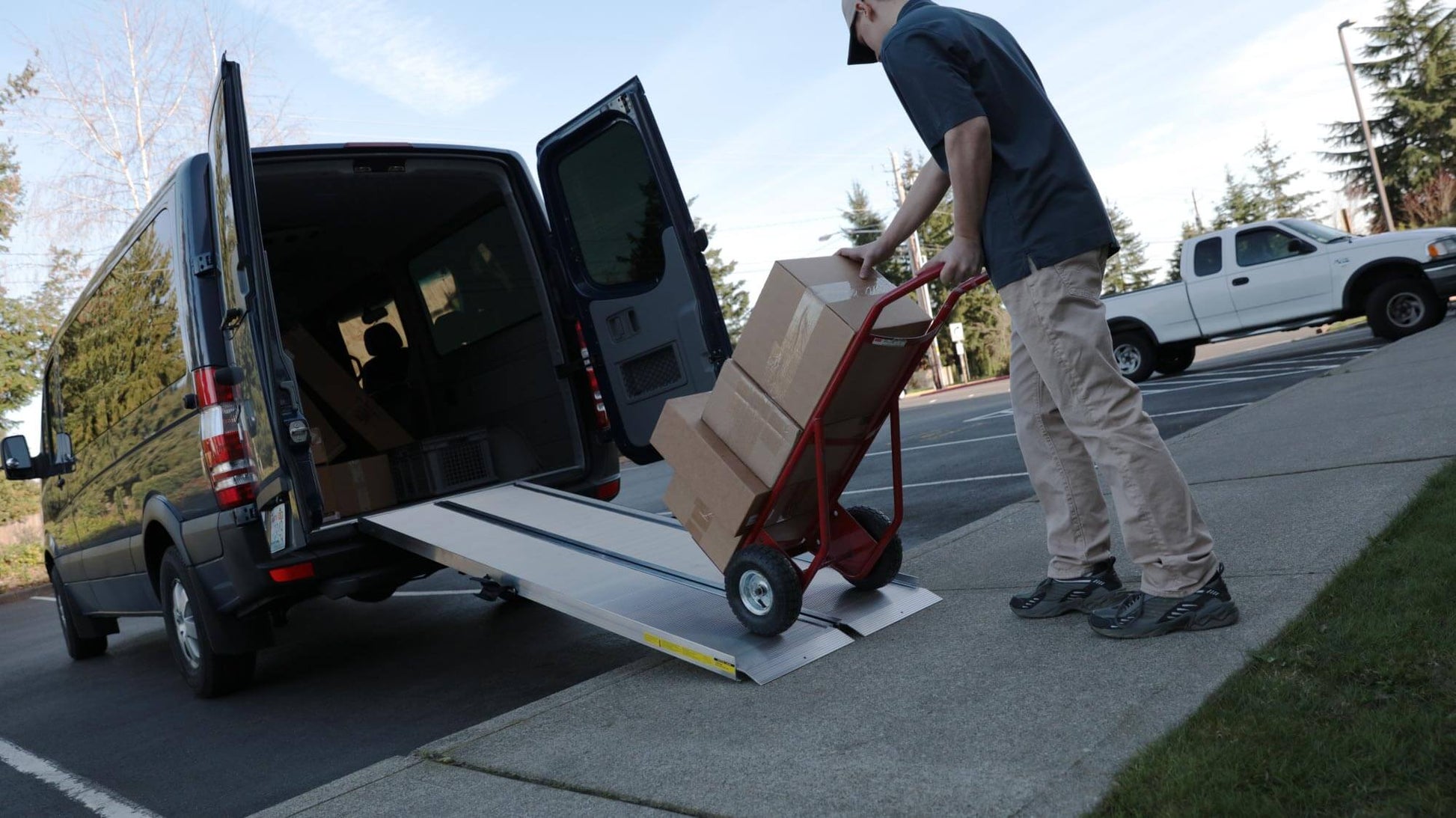

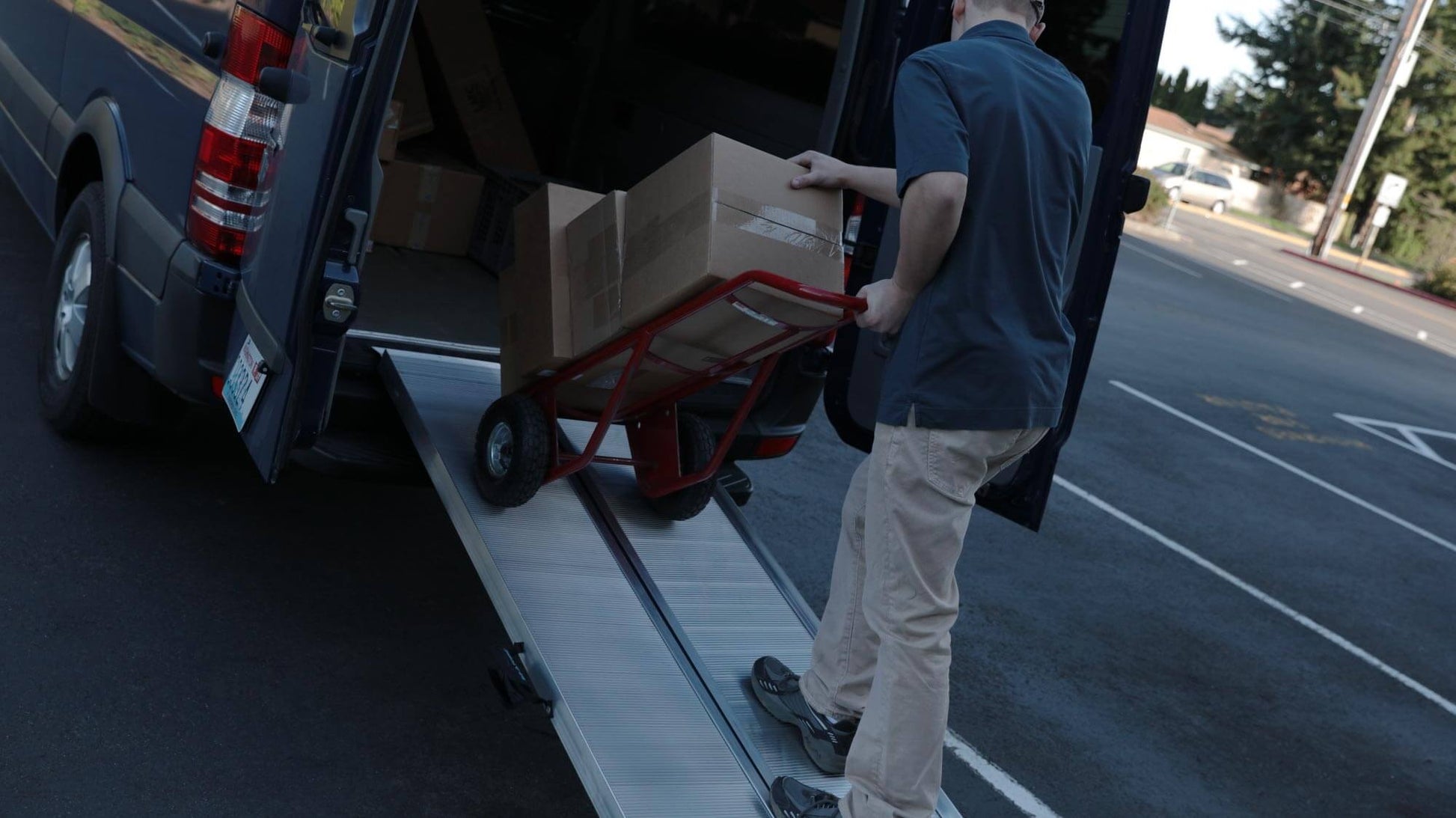

With its curbless design, the TRAVERSE™ Singlefold Edgeless Ramp allows wider equipment with inset wheels to be loaded with ease. Sets up quickly and features a folding design with carrying handles for easy transport and stowage. Its full-length, live hinge allows uniform weight distribution and eliminates load deflection. Features an extruded, slip-resistant surface for superior traction. This durable ramp was designed for high-traffic use and is simply the best in the industry.

Ramp sizes: 2ft, 4ft, 6ft, and 8ft.

Sorry, this item is temporarily out of stock!

Locate a dealer

Locate a dealer

Locate a dealer

Request A Quote

Submit an Inquiry

Unsure of measurements?
Use our ORBIT Calculator

Unsure of measurements?
Use our FORTRESS Calculator

Built in the USA

3-Year

Warranty

‍

‍

TRAVERSE™ Singlefold Edgeless Ramp

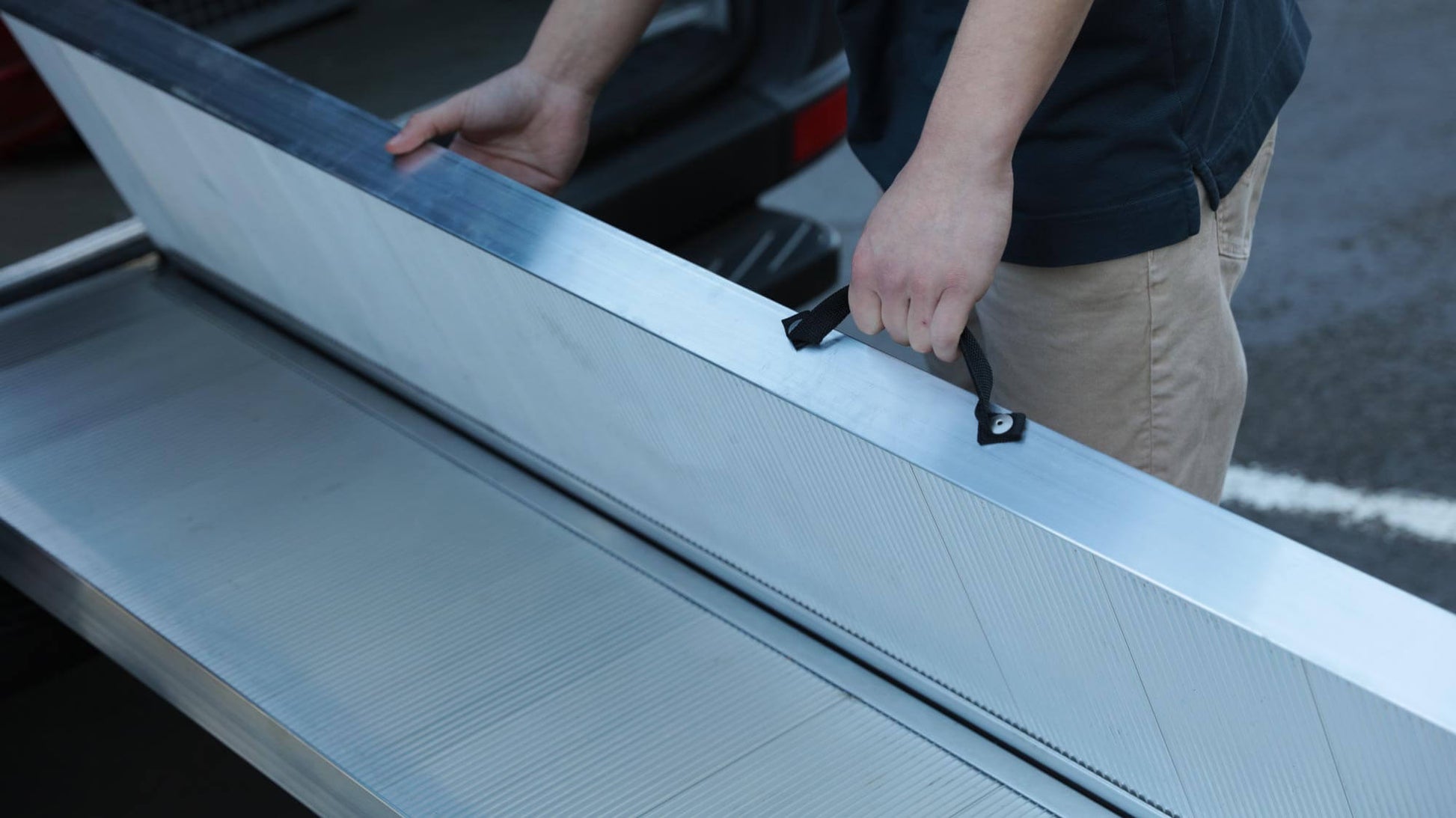

ERGONOMIC HANDLES:

Durable handles offer convenient carrying with a comfortable grip. Their flexible design won't break or impair the ramp's function.

‍

TRAVERSE™ Singlefold Edgeless Ramp

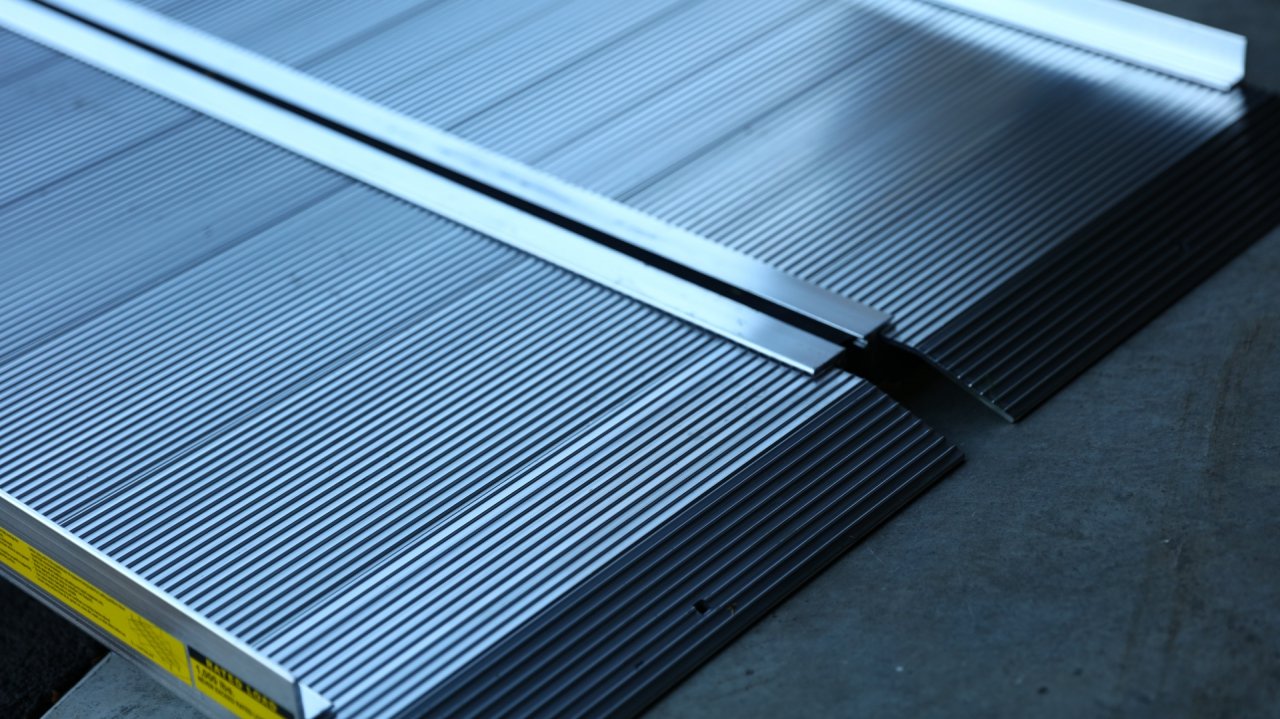

SAFETY:

Extruded, slip-resistant surface for superior traction.

‍

TRAVERSE™ Singlefold Edgeless Ramp

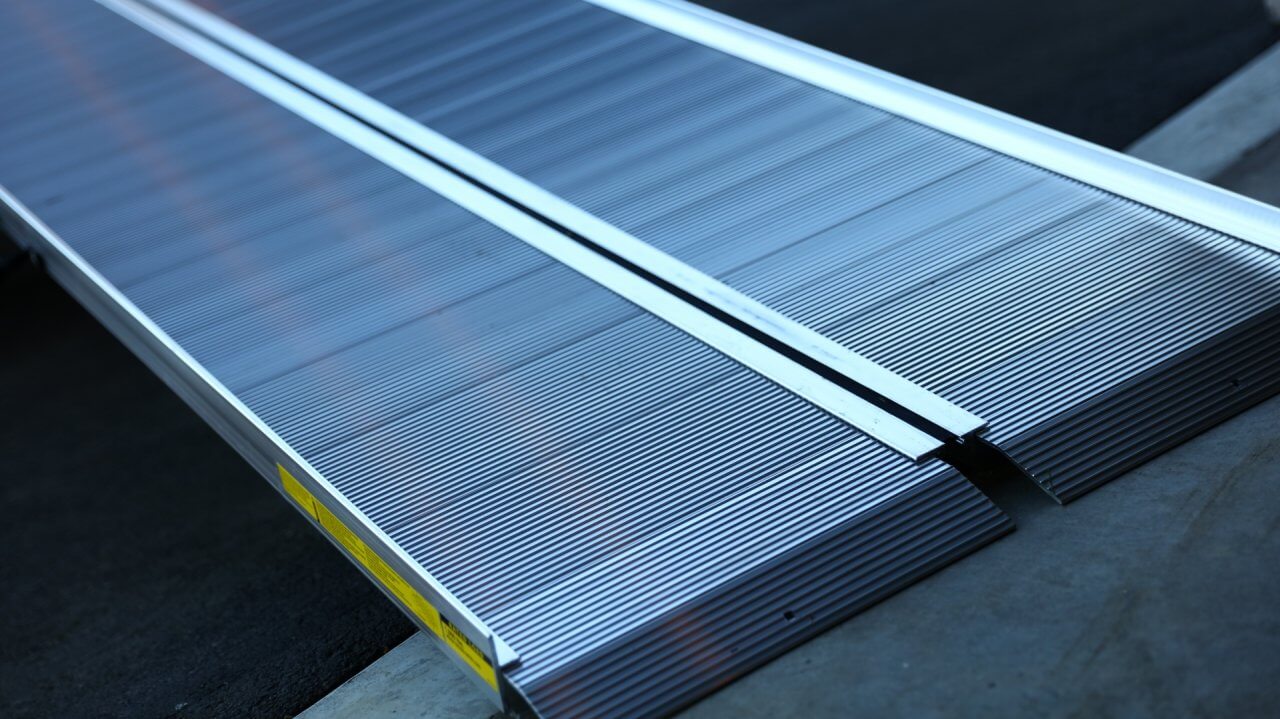

RAMP HINGE AND LOAD DISTRIBUTION:

The hinge runs the full length of the ramp. This design helps ensure the product is strong and safe by dispersing the load throughout the entire ramp, rather than on two hinge points. The hinge design also helps protect against pinching and makes setup quick.

‍

TRAVERSE™ Singlefold Edgeless Ramp

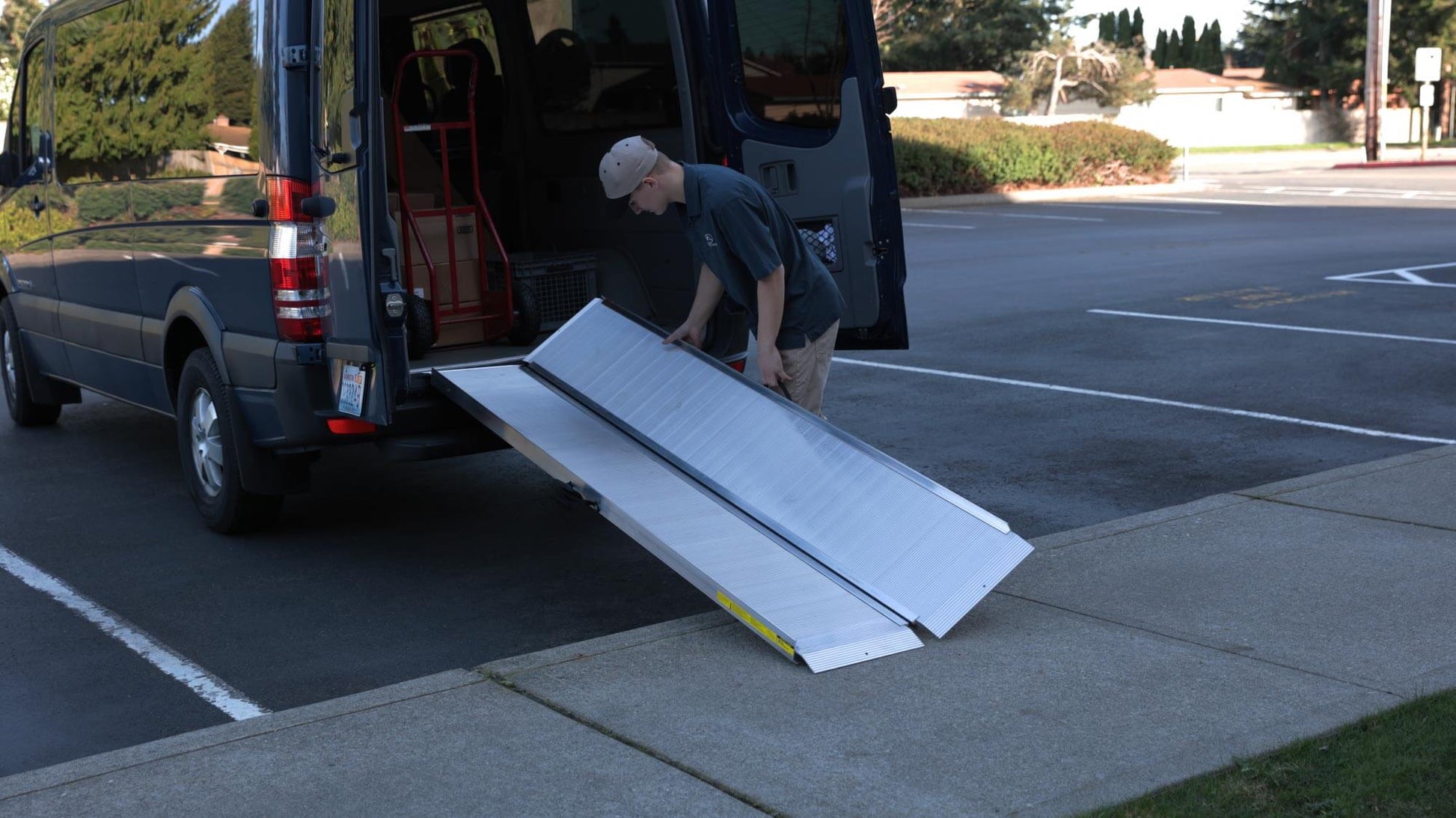

STORAGE:

Folds compactly to 15" wide and is easily stowed in your truck or van.

‍

TRAVERSE™ Singlefold Edgeless Ramp

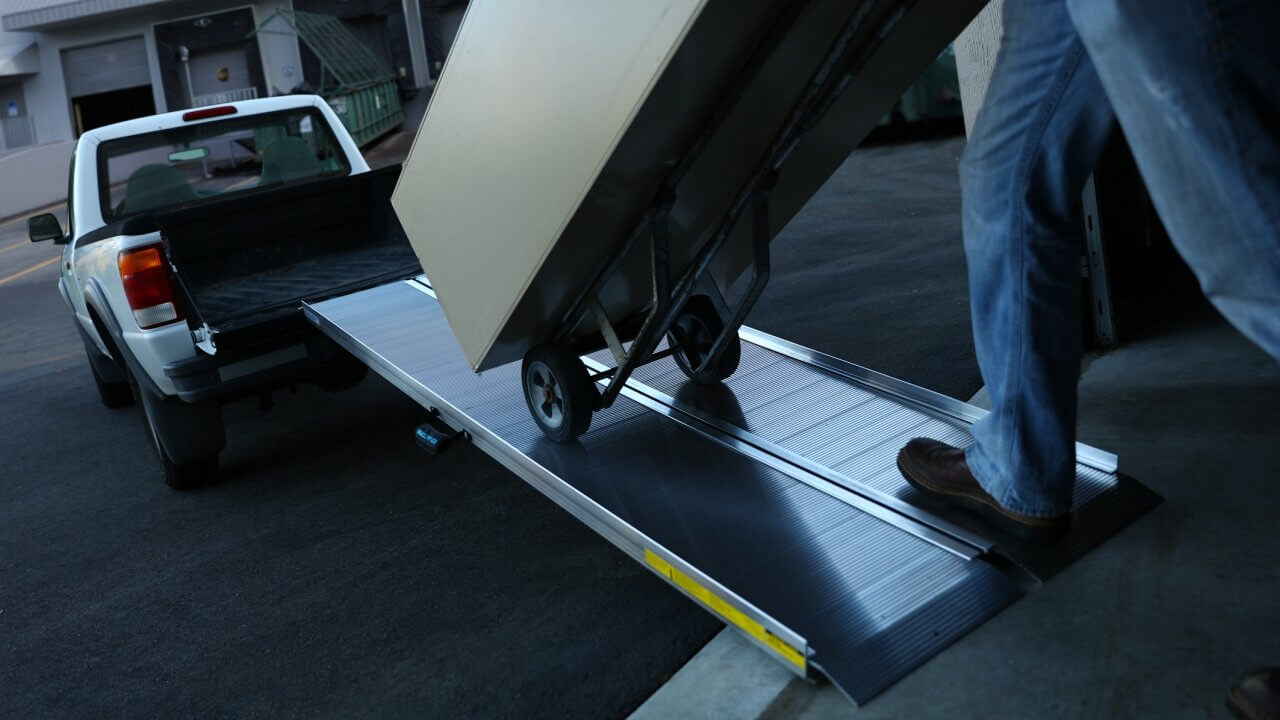

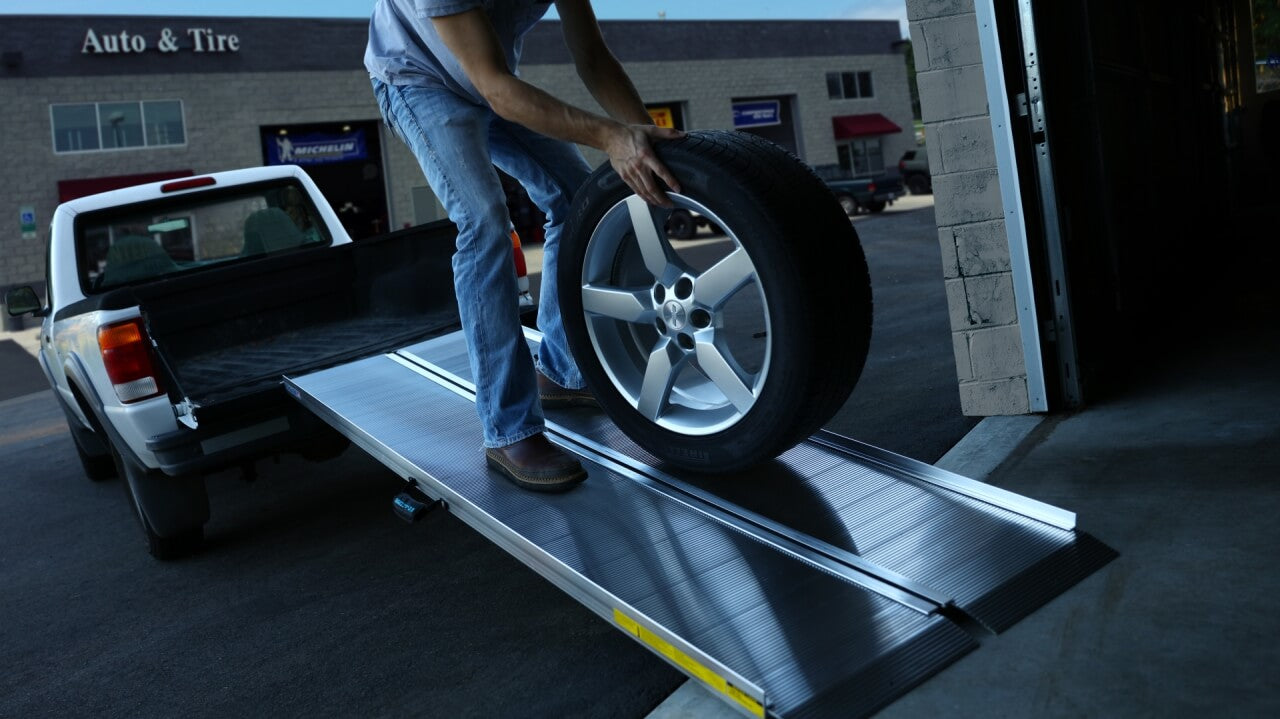

OVERSIZED CAPABILITIES:

Edgeless design is ideal for loading oversized equipment with low clearance and/or inset wheels.

MADE IN THE USA AND CARRIES A 3-YEAR WARRANTY.

‍

TRAVERSE SFEL02

TRAVERSE SFEL04

TRAVERSE SFEL06

TRAVERSE SFEL08

Usable Width

Folded Width

Overall Length

Overall Width

Overall Height

Rated Load*

Weight

Warranty

30.96"

15.48"

24"

30.96"

1.575"

1600 lbs.

13.20 lbs.

3-year

30.96"

15.48"

48"

30.96"

1.575"

1400 lbs.

24.55 lbs.

3-year

30.96"

15.48"

72.125"

30.96"

1.575"

1200 lbs.

35.75 lbs.

3-year

30.96"

15.48"

96.185"

30.96"

1.575"

1000 lbs.

46.95 lbs.

3-year

NOTE: Weights and dimensions are approximate and subject to change.

*Weights and dimensions are approximate and subject to change. Do Not Exceed Rated Load!

*Rated load is reduced by 50% if ramp is separated and used as a standalone section.

For additional specs and dimensions see “Documents”

Available Options

Technical Specifications

Warranty (3-year)

‍

Although it's our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.

What is the difference between the Singlefold and the Singlefold Edgeless?

The Singlefold Edgeless Ramp simply doesn’t have curbs on each side of the ramp so that it can accommodate wider equipment. The Singlefold Edgeless Ramp also conveniently separates into two sections, unlike the Singlefold, for increased versatility.

Is there any assembly required?

No, this ramp comes pre-assembled.

Can the ramp separate into two sections?

Yes, this ramp can separate into two sections for easier loading/unloading of equipment. Please note weight capacity adjustment when separated.

‍
