SUITCASE® TRIFOLD® AS Ramp

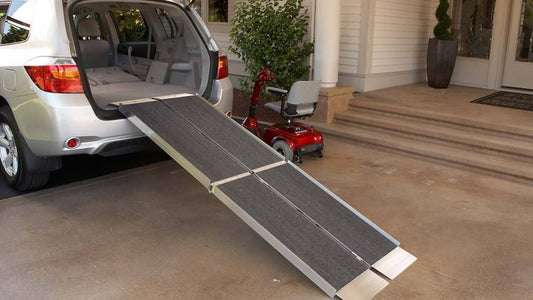

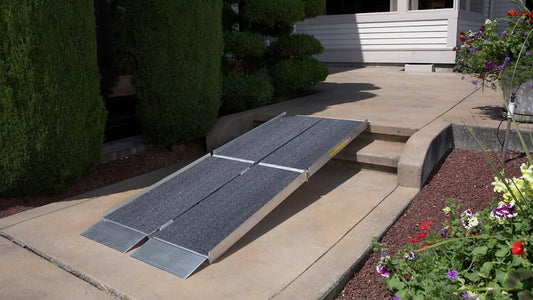

Ask a QuestionThe SUITCASE® TRIFOLD® AS Ramp has a unique 3-fold design that allows for ultimate portability when longer ramp lengths are needed. The ramp is designed to be used and carried as one unit, or can be quickly separated into two individual sections. Offered in sizes ranging from 5 to 10 feet in length and is ideal for raised landings, steps, or larger vehicles. Made from aircraft-quality aluminum, this ramp features an applied, slip-resistant surface and self-adjusting bottom transition plates for easy conversion from ramp to ground. Explore the options, specifications, and features of the SUITCASE Trifold AS Ramp to see if it meets your needs for accessibility.
Ramp sizes: 5ft, 6ft, 7ft, 8ft, and 10ft. See SUITCASE Trifold AS Size Chart.
Made in the USA
Lifetime Warranty
Related Products
These products may also interest you
This product also resides in the following industries:
These buttons will take you to the respecitve categoryFeatures
Trifold Design

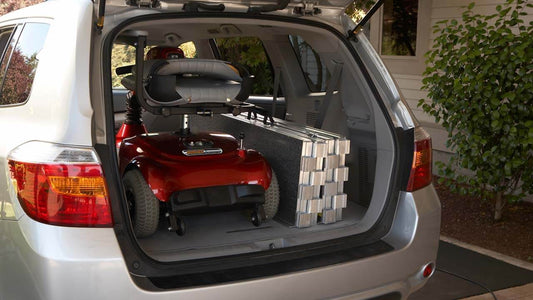

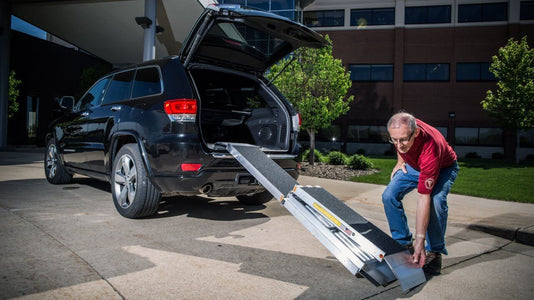

The unique 3-fold design of the SUITCASE Trifold AS Ramp makes it easy to set up and transport from place to place. This portable ramp can separate into two easy-to-carry sections for easier transport and reduced handling weight.
Slip-resistant Ramp Surface
The SUITCASE Trifold AS Ramp offers an applied slip-resistant texture that allows mobility devices to retain traction in all weather conditions.
Patented Hinge
Features interlocking brackets to provide smoother operation and reduced pinch points.
Specifications
SUITCASE TFAS05 | SUITCASE TFAS06 | SUITCASE TFAS07 | SUITCASE TFAS08 | SUITCASE TFAS10 | |
Made of Aluminum | √ | √ | √ | √ | √ |
Slip-resistant Surface | √ | √ | √ | √ | √ |
Built-in Carrying Handle | √ | √ | √ | √ | √ |
Usable Size (L x W) | 5’ x 29.5” | 6’ x 29.5” | 7’ x 29.5” | 8’ x 29.5” | 10’ x 29.5” |
Folding Size (L x W x H) | 30.75" x 15" x 11.5" | 36.75" x 15" x 11.5" | 42.75" x 15" x 11.5" | 48.75" x 15" x 11.5" | 60.75" x 15" x 11.5" |
Weight* | 16 lbs. ea. (2 sections) | 19 lbs. ea. (2 sections) | 22 lbs. ea. (2 sections) | 25 lbs. ea. (2 sections) | 30 lbs. ea. (2 sections) |
Weight Capacity | 800 lbs. | 800 lbs. | 800 lbs. | 800 lbs. | 800 lbs. |
For Wheelchairs & Scooters | √ | √ | √ | √ | √ |
Usage Guidelines** | Curbs 1-2 Steps Some Minivans | 1-3 Steps Some Minivans Some SUVs | 1-3 Steps Some Minivans SUVs | 2-3 Steps Some Minivans SUVs | 2-4 Steps Some Minivans SUVs |
* Weights are approximate and may vary.
** Consult your mobility equipment's owner guide for the proper slope/incline. Never exceed its recommendations.
For additional specs and dimensions see “Documents”
Options
Available Options
Top Lip Extension (TLE)

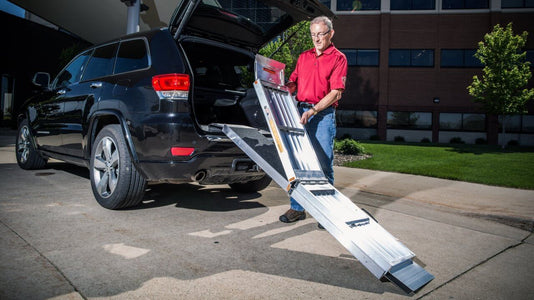

The SUITCASE Trifold AS Ramp is compatible with the Top Lip Extension (TLE). The TLE increases the usefulness of the Trifold AS Ramp by extending the standard 3” top transition plate to 9”. This increase in reach allows the ramp to clear the rear bumper when loading a mobility device into the back of an SUV or minivan.
Documents
- Lifetime Warranty
- SUITCASE Brochure
- SUITCASE Trifold AS Technical Specifications
- SUITCASE Trifold AS Instructions
- Although it's our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.
FAQ
-
What is the difference between the suitcase ramp and the trifold ramp?
The suitcase ramp folds in half one time and remains the overall length of the ramp when folded. The trifold ramp folds in half and then in half the long way to make the ramp half as long and half as wide when folded.
-
What is the difference between the SUITCASE® Singlefold ramps and the SUITCASE® Trifold® AS ramp?
The SUITCASE Singlefold ramps fold in half one time and remain the overall length of the ramp when folded. The Trifold AS ramp folds in half and then in half the long way to make the ramp half as long and half as wide when folded.
-
Why do some ramps have the black applied surface, but not others?
This is a preference point for some people. Both surfaces are very durable and slip-resistant.
-
Can this ramp be separated?
Yes. By removing two bolts, the ramp can be separated into two sections for easy transport or storage.
-
What are the plates for at the top and bottom of the ramp?
There is a fixed top transition plate for secure placement with holes for attaching to the supporting surface. There are also two independently adjustable ground transition plates that allow for smoother transfers from ramp-to-ground and ground-to-ramp.
-
Can you connect multiple ramps together?
No. We suggest checking out some of our other ramps if longer lengths are needed. SUITCASE® Trifold® AS and GATEWAY™ 3G ramps are available up to 10’ and PATHWAY® 3G ramps can be connected to achieve whatever length you need.
-
How do you keep the ramp from moving?
Use the provided clevis pins or screws through pre-drilled holes at the top of each section to secure the ramp to the supporting surface.
-
Are there handrails available?
No. If you need a portable ramp with handrails, check out our GATEWAY™ 3G Solid Surface Portable Ramp, which has two different handrail style options.
-
Is there anything that prevents the ramp from swinging open when it is being carried?
Yes, there are hook and loop strips that secure the sections together during transport.
