What is the difference between the SUITCASE® Singlefold ramps and the SUITCASE® Trifold® AS ramp?

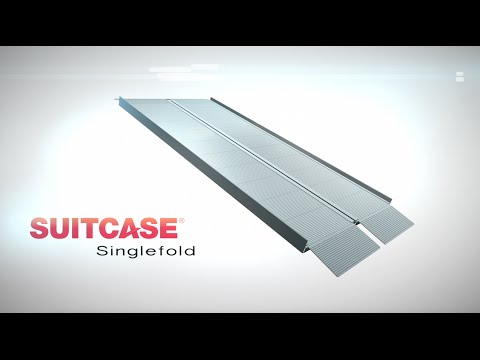

The SUITCASE Singlefold ramps fold in half one time and remain the overall length of the ramp when folded. The Trifold AS ramp folds in half and then in half the long way to make the ramp half as long and half as wide when folded.

What is the difference between the AS and non-AS?

The AS ramp has a black, high-strength, applied surface that is textured to provide excellent traction. The non-AS ramp is our standard surface where the slip-resistant tread is extruded into the aluminum.

What are the plates for at the top and bottom of the ramp?

There is a fixed top transition plate for secure placement with holes for attaching to the supporting surface. There are also two independently adjustable ground transition plates that allow for smoother transfers from ramp-to-ground and ground-to-ramp.

Can you connect multiple ramps together?

No. We suggest checking out some of our other ramps if longer lengths are needed. SUITCASE® Trifold® AS and GATEWAY™ 3G ramps are available up to 10’ and PATHWAY® 3G ramps can be connected to achieve whatever length you need.

How do you keep the ramp from moving?

Use the provided clevis pins or screws through pre-drilled holes at the top of each section to secure the ramp to the supporting surface.

Are there handrails available with this ramp?

No. If you need a portable ramp with handrails, check out our GATEWAY™ 3G Solid Surface Portable Ramp, which has two different handrail style options.

Can this ramp be separated?

No. If you need a portable ramp that separates into two sections, check out our SUITCASE® Singlefold AS Ramp or our SUITCASE® Trifold® AS Ramp.

‍
