TRANSITIONS® Angled Entry Plate | EZ-ACCESS

Ramps

TRANSITIONS®

Angled Entry Plate

No items found.

No items found.

No items found.

TRANSITIONS®

Angled Entry Plate

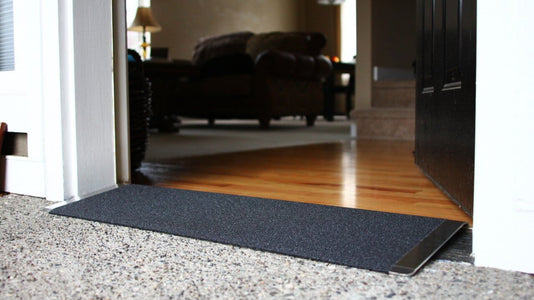

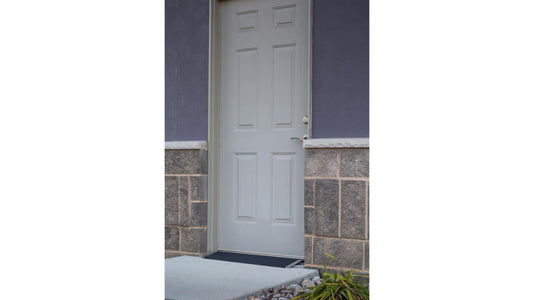

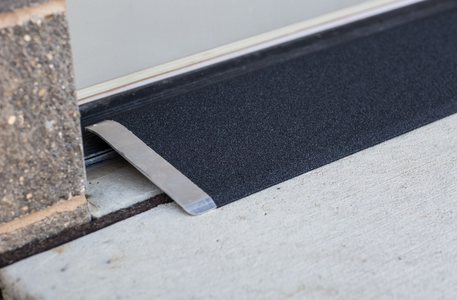

The TRANSITIONS® Angled Entry Plate is a portable stand-alone threshold plate with a slip-resistant applied surface for superior traction. This single-piece, formed aluminum plate helps to eliminate trip hazards and accommodates most mobility devices. The Angled Entry Plate is available in 8-, 10-, and 12-inch lengths. Browse through the tabs below to learn more.

Locate a dealer

Locate a dealer

Request A Quote

Submit an Inquiry

Unsure of measurements?
Use our ORBIT Calculator

Unsure of measurements?
Use our FORTRESS Calculator

Built in the USA

Lifetime

Warranty

QUICK AND EASY SETUP

The Angled Entry Plate installs in minutes. The simple 1-piece design means no assembly or moveable parts; just set the plate in the desired position, and its ready to use.

SLIP-RESISTANT SURFACE

Features a superior applied tread for high traction.

HIGH-STRENGTH ALUMINUM

Formed from high-strength aluminum which will not rust or corrode over time.

PRE-DRILLED SLOTS

Holes are pre-drilled for anchoring. Hardware included.

TAEP 08

TAEP 10

TAEP 12

Slip-resistant surface

Overall dimensions (L x W)

Height (Plate only)

Usable height*

Weight Capacity

Weight**

✓

8" x 32"

0.695"

Up to 1.312"

700 lbs.

3.5 lbs.

✓

10" x 32"

0.695"

Up to 1.625"

700 lbs.

4.25 lbs.

✓

12" x 32"

0.695"

Up to 2"

700 lbs.

5 lbs.

NOTE: Weights and dimensions are approximate and subject to change.

*Consult your mobility equipment's owner guide for the proper slope/incline. Never exceed its recommendations.

**Weights are approximate and may vary.

For additional specs and dimensions see “Documents”

Available Options

TRANSITIONS Angled Entry Plate Technical Specs

TRANSITIONS Brochure

TRANSITIONS Angled Entry Plate Instructions

Warranty (Lifetime)

Although it's our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.

Is there assembly required?

The plate is a simple, one-piece design with no assembly required.

What is the ideal application?

A fairly small threshold that needs to be converted into a smooth surface to ease the transition through the doorway.

What kind of surface does this have?

The Angled Entry Plate has a black applied tread for high traction.

How do you keep the plate from moving?

Screws are supplied for securing the plate to a wood surface.

‍
