TITAN™ Code Compliant Modular Access System

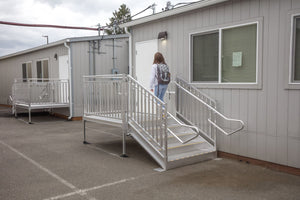

Ask a QuestionLooking for safe access for your students and faculty? The TITAN™ Code Compliant Modular Access System provides the most adaptable and durable ramp system for your school. Compliant with ADA, IBC, OSHA, and local code guidelines. Combine ramps, platforms, and steps to create the ideal system for your needs. Its field-proven design can be configured to fit most applications. Powder coating options are also available.
To purchase, please call us at 1-877-751-1867.
For Layouts and Drawings See Drawings Tab Below
Got a project?
We want to work with you!
Made in the USA
3 year Warranty
Got a project?
We want to work with you!
This product also resides in the following industries:
These buttons will take you to the respecitve categoryFeatures
Safety
Features 4" high curbs and continuous handrail. For added safety and security, picketed guards or optional lower child rails, are available.
Slip-resistant Surface
To keep students and faculty safe, all walking surfaces on the TITAN feature Gecko Grip®, our patent pending, raised-rib tread featuring a 2-tier, 3-point gripping surface. The innovative design utilizes deep knurling, which provides enhanced cross-directional traction when entering and exiting the system.
Our welded, extruded tread provides permanent slip-resistance and reinforced strength.
High-quality Aluminum
Made of corrosion-resistant aluminum for years of worry-free use. Naturally non-combustible.
Easy to Install
Universal components and pre-assembled sections make installation quick and easy. If your needs change, the TITAN can be reconfigured or relocated as needed.
Customized Configurations
Stamped drawings, specific to your site, are available.
Quick Ship
To help reduce expensive delays, standard configurations ship within 24-hours.
Specifications
Specifications
TITAN Modular Access System | |
|---|---|
Ramp lengths | 2', 3', 4', 5' and 6' |
Ramp Widths | 48" and 54" (clear width) |
Platform Sizes | 5'x5', 5'x6', 5'x7' and 6'x6' (clear width) |
Step Heights with 6" Riser | 18", 24", 30", 36", 42", 48", 54", and 60" |
Step Width | 44" (usable) |
Picketed Rails | 42" high Guard |
Two-line Rails | 42" high Top Rail, 21.5" high Midrail |
Handrails (standard) | 36" high |
Handrails (child) | 25" high |
Legs | Fully independent and adjustable |
NOTE: Weights and dimensions are approximate and subject to change.
For additional specs and dimensions see Documents
Drawings
Options
Available Options
Powder Coating
Offers customizable solutions to suit the functional and aesthetic requirements of your business. Available in three standard colors: Black, Tan, and Bronze.
Documents
- 3-year Warranty
- TITAN Brochure
- TITAN Instructions
- TITAN Technical Specifications
- TITAN Step Instructions
- TITAN Step Adjustable Leg Kit Instructions
- Although it's our intent to keep all documents current, some documents are subject to change and may take time to update. If you are unsure whether you have the most current revision or if your product is different, contact our technical support.
FAQ
-
Is bracing needed?
Bracing is needed on ramps, platforms, and steps with rises of 36” and above. Additional bracing is needed at 72” and above.
-
Does my modular ramp system have to go straight out or can it turn?
You can configure the system to be a straight run or it can turn left or right by simply using a turn platform. The ramp system can also incorporate a switchback by using a turn back platform. Need the ramp to extend at an angle? Ask us about a custom angle platform! The system can be configured to meet your exact needs.
-
Do you offer other surface options such as Grip Strut?
We do offer custom surface options such as Grip Strut and Bar Grate on our platforms and steps. We also have heavier duty tread options for ramps.
-
What kind of tread is used on this system?
Ramps, platforms, and steps feature our patent-pending Gecko Grip tread. This specialized raised-rib tread has a 2-tier, 3-point gripping surface. The innovative design utilizes deep knurling, which provides enhanced cross-directional traction when entering and exiting the system.
-
What sizes do the platforms and ramps come in?
Our standard commercial platforms come in the following sizes: 5'x5', 5'x6', 5'x7', 6'x6'. Ramps are 48” & 54” wide and come in lengths of 2’-6’. Custom sizes are available upon request.
-
Do you offer Professional Engineer stamped drawings?
Yes, we do offer this service for a fee.
-

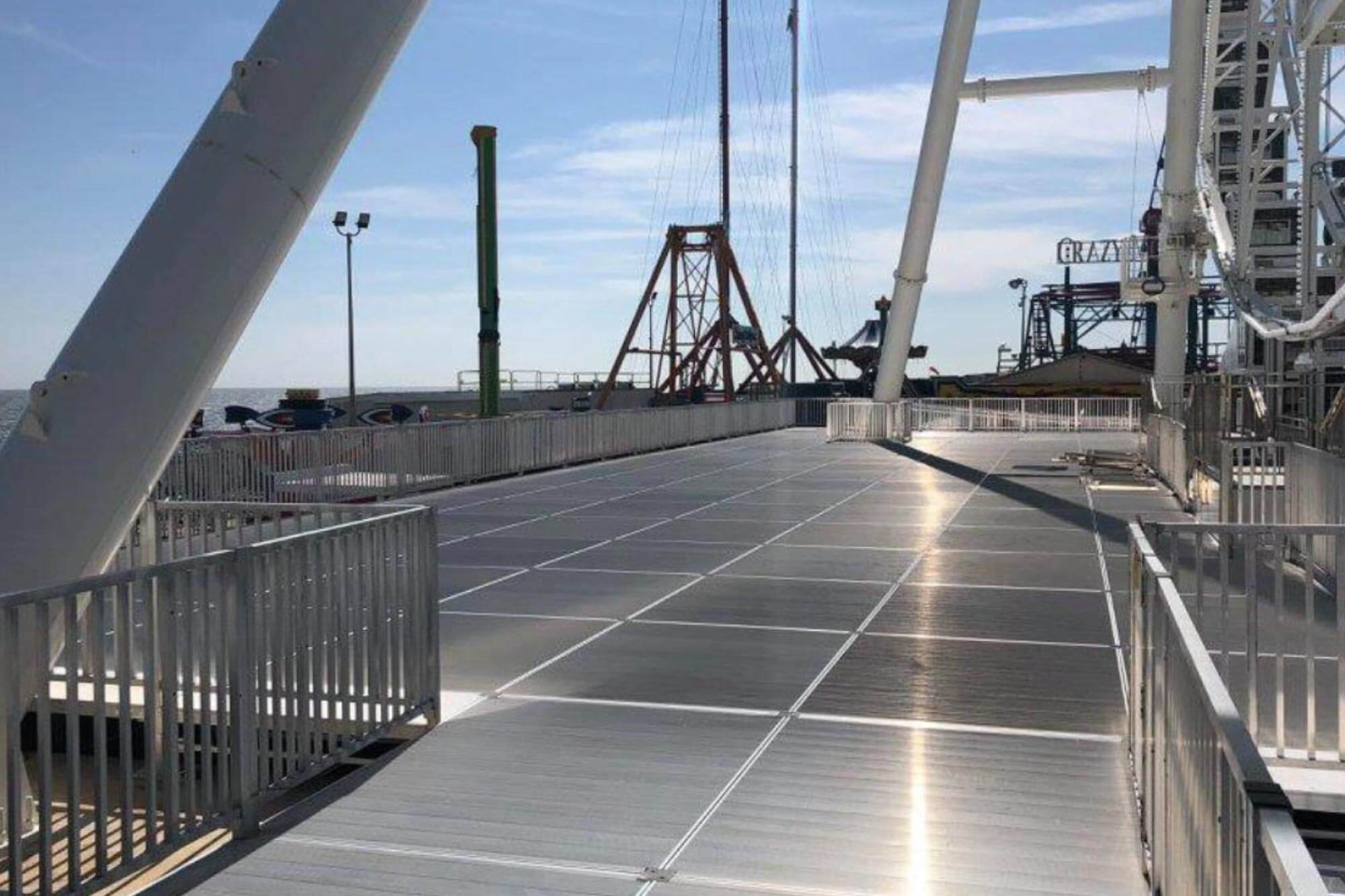

Can several platforms be connected together?
Yes, platforms can be connected together to create any sized deck or elevated work area.
-

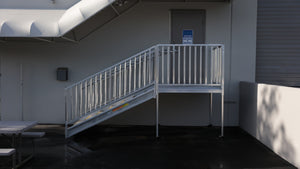

Do you have steps that I can put in instead of a ramp?

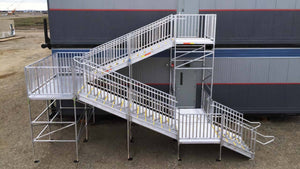

Yes, our steps can not only be incorporated into a ramp system, but they can also be used in conjunction with our platforms or an existing platform or deck. Our steps can even be stacked to create a longer run.
-
What do I use for ice and snow removal on ramps, platforms, and steps?
We suggest using Magnesium Chloride salt substitute. Check out a blog we wrote on this!
-
Why don't you sell platforms without handrails?
Safety is important to us and selling platforms with handrails is our standard.
-
Do your steps have open or closed risers?
Our TITAN™ steps have closed risers; our FORTRESS® OSHA Stair System has open risers.
-
Are the ramps, platforms, and steps adjustable?
Yes, our independently adjustable legs provide a range of height adjustment. This is especially convenient when installing the system on uneven terrain.
