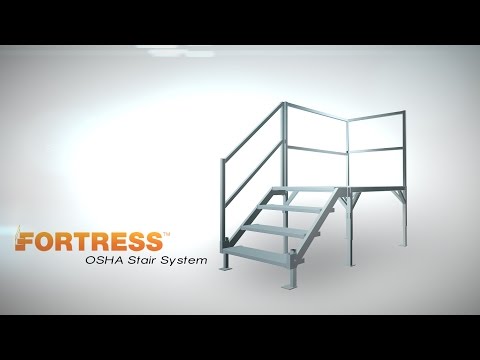

FORTRESS® OSHA Stair System

FORTRESS® OSHA Stair System

The FORTRESS® OSHA Stair System provides temporary or permanent access to dumpsters, recycling containers, or large machinery and can be configured to fit many different applications. Available in two sizes, this durable, aluminum stair system can be used in all weather conditions and is built to take on the rigors of high-traffic use. Minimal assembly required. Also available for the FORTRESS Stair is an optional, easy-to-install canopy for rain, sun, and snow protection.

To purchase, please contact us at 888-362-8612 .

Product Features

  • Variable Position Height Range:
    Highest adjustability in the industry with each size having three height positions. 3-step adjusts from 23” to 34” (OSHA compliant at 25.5” and 34”) and 4-step adjusts from 27.5” to 42.5” (OSHA compliant at 34” and 42.5”).
  • Stair System Components:
    Platform legs feature captured fasteners allowing for a wide range of adjustability. The one-step riser connection uses an OSHA safety pin to lock the riser to the platform. Also features hardware-free handrails that slide into the platform and lock securely in place with Valco snap buttons. Handrails are universal for left or right installation and fold flat for easy transport and storage. System ships with one riser handrail and one platform handrail.
  • Safety and Durability:
    OSHA compliant and exceeds NIOSH lifting recommendations. Each major component weighs less than 50 lbs. allowing for safe, one-person installation. Welded construction and 6000 series alloy aluminum. Extruded tread for maximum slip-resistance.
  • Stair System Adjustability and Use:
    The platform and riser legs adjust independently allowing for easy, on site leveling. The design also allows the stair system to be easily expanded, reconfigured, or moved.
  • Made in the USA and carries a three-year warranty.

This product resides in the following industries:

Gallery

Specifications



FOR2334

FOR2742

Number of Risers

3

4

Height adjustment

23”, 25.5”, & 34”

27.5”, 34”, & 42.5”

OSHA-compliant heights

25.5” & 34”

34” & 42.5”

Riser weight with legs

29 lbs.

34 lbs.

Riser handrail weight

7.8 lbs.

9 lbs.

Platform weight with legs

47 lbs.

47 lbs.

Platform handrail weight

17 lbs.

17 lbs.

System net weight

101 lbs.

107 lbs.

Footprint (fully assembled) (W x L x H)

41" x 89.5" x 76 5/8”

41" x 99" x 76 5/8”

Platform size – overall (W x L x H)

40” x 60” x 23”

40” x 60” x 23"

Platform size – useable (W x L)

36.5” x 56.5”

36.5” x 56.5”

Aluminum type

6000 series

6000 series

Rated load*

100 lbs. sq. ft., 300 lbs. concentrated

100 lbs. sq. ft., 300 lbs. concentrated

Standard feet

4” x 4” sq.

4” x 4” sq.

Riser height

8.5”

8.5”

Riser tread depth

9.5”

9.5”

Riser tread width

36.5”

36.5”

Riser handrail height – measured from
leading edge of step tread to gripping surface

36”

36”

Platform handrail height

42.5”

42.5”

Warranty

3 Years

3 Years

Riser type

Open

Open

Universal handrails

Left or right turn

Left or right turn

NOTE: Weights and dimensions are approximate and subject to change.

*Do not exceed rated load

For additional specs and dimensions see “Documents”

Options

Available Options



Canopy

canopy

Easy-to-install 96” canopy for overhead protection from the elements. The rust-resistant Canopy features an aluminum frame with 22-gauge galvanized steel roof. Attaches directly to the FORTRESS Stair, which means no footings or building alterations are needed.



Construction

Features a sturdy, boxed-frame design for superior strength and durability and all fittings are made of high quality aluminum or galvanized steel. The four-post canopy has cross member supports for wind load resistance.



Simple Installation

One-person assembly in under 30 minutes.



Safety and Durability

Exceeds NIOSH lifting recommendations. Each major component weighs less than 50 lbs. allowing for safe, one-person installation.



Adjustability and Use

The rapid-swap design also allows the canopy to be easily moved as needed. Generous, 96" measurement from walking surface to roof ensures plenty of door swing and light fixture clearance.



Oversized Feet

May eliminate the need for pavers in most soil conditions.



Platform with Drain Holes

Helps facilitate drainage with additional .75” holes in platform surface.



Secondary Handrails

If handrails need to be installed on both sides, additional riser handrails and platform handrails are available.
